A fire station in Uptown, Pittsburgh that activates urban voids to create a connection between the community's industrial past and present redevelopment; designed in collaboration with Abhikram Shekhawat, Ana Furtado, and Amanda Qian.
(2024)

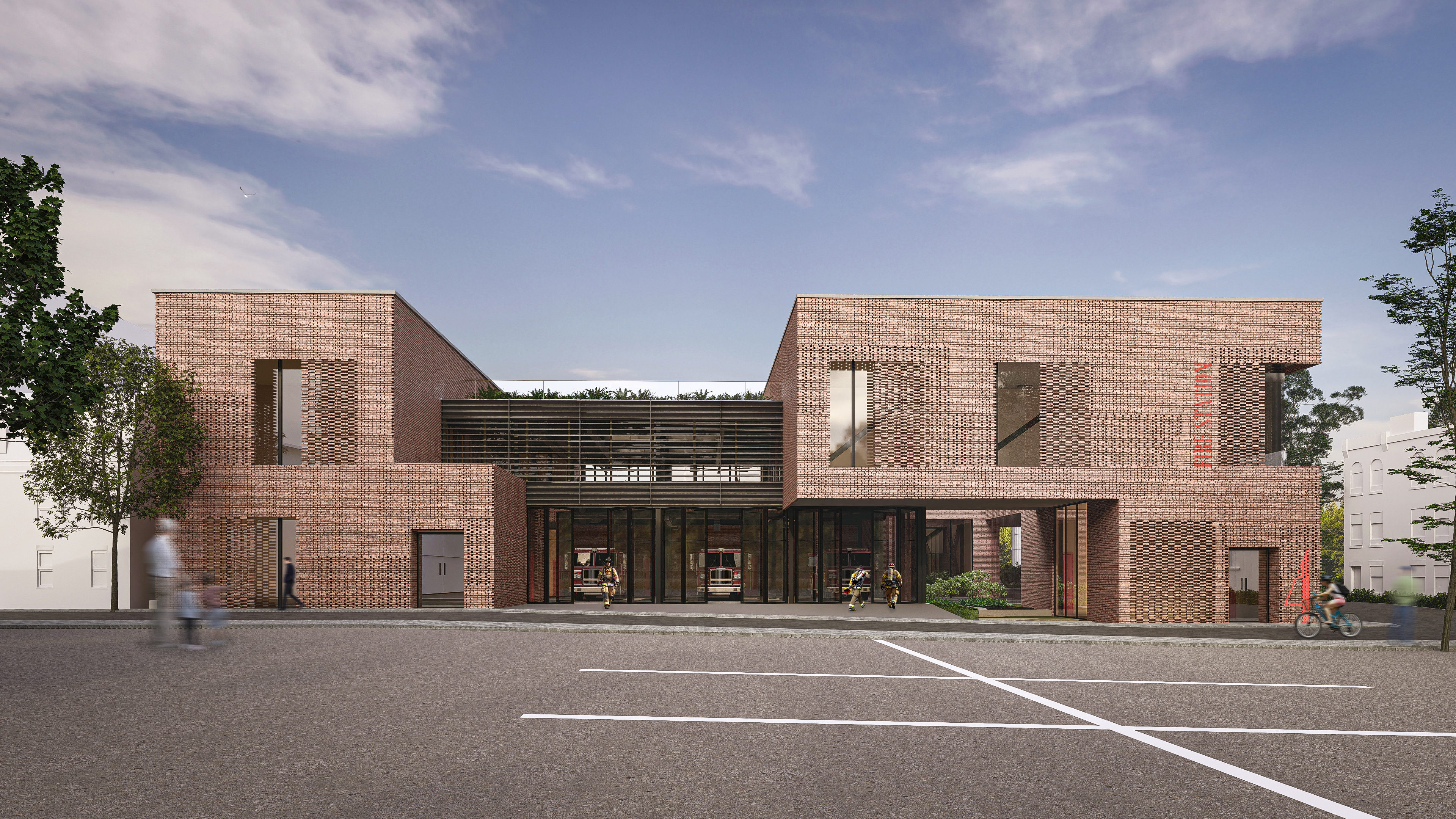

Front Facade Render
Uptown, Pittsburgh, also known as The Bluff, is a historically industrial neighborhood that has suffered from large areas of abandonment after the fall of Pittsburgh's steel industry but has recently seen an influx of student residents with the expansion of Duquesne University and UPMC Mercy. Our proposed fire station is envisioned as a critical link between this evolving community and the broader context of urban redevelopment. Central to the design strategy is the use of urban voids, vacant lots and houses, that we want to reactivate, inviting the public into the space and encouraging interaction.
The station’s design leverages these voids to by integrating open, connective spaces, such as the apparatus bay, into the design to bring people together, strengthening the community and reinforcing the role of the fire station as a pillar of public service. The material palette will enhance the connection between the past and future, thoughtfully blending refurbished bricks with modern, sustainable materials. Finally, careful distinction between public and private spaces within the station will ensure functionality while maintaining an inviting presence.

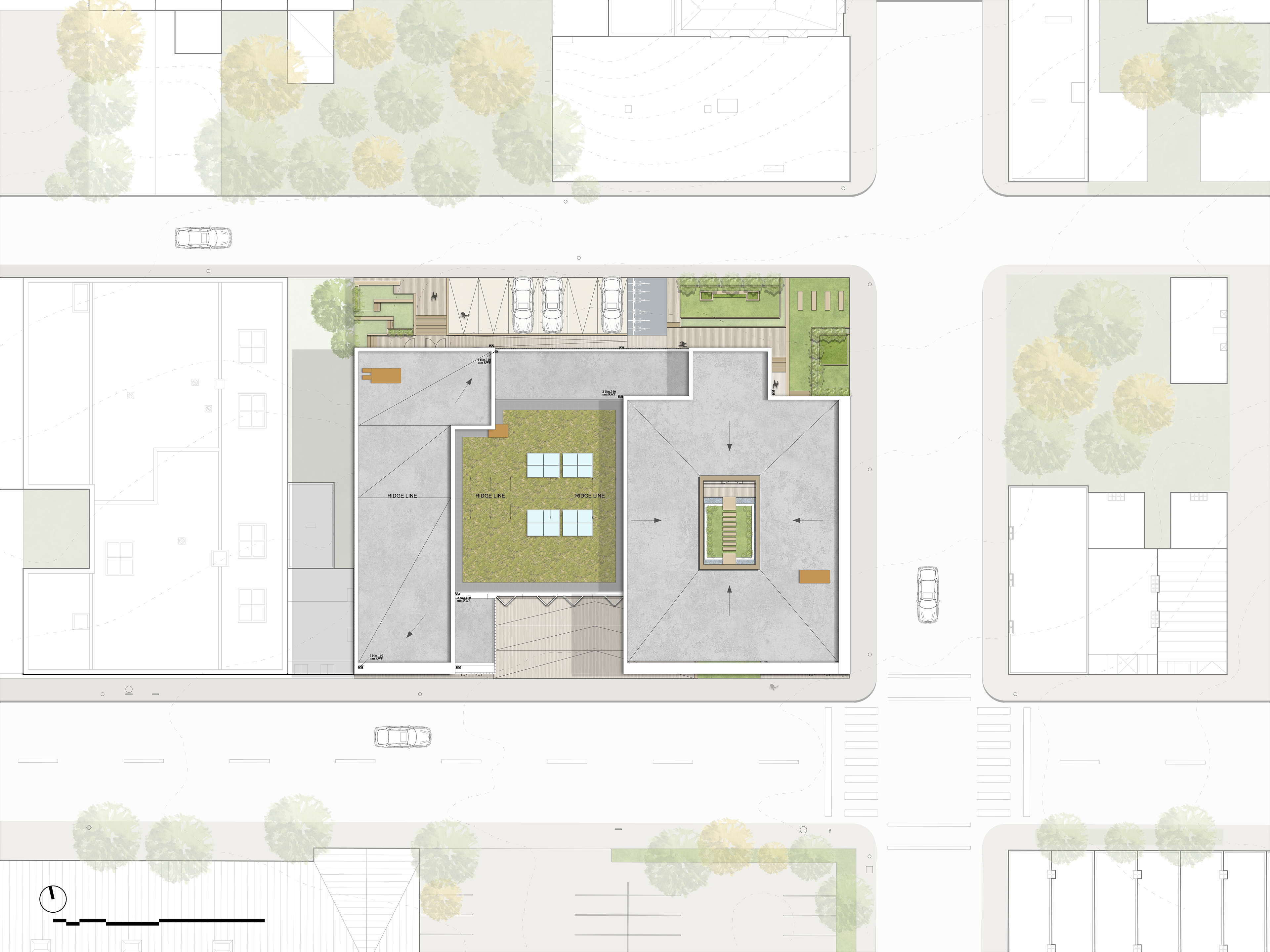

Site Roof Plan

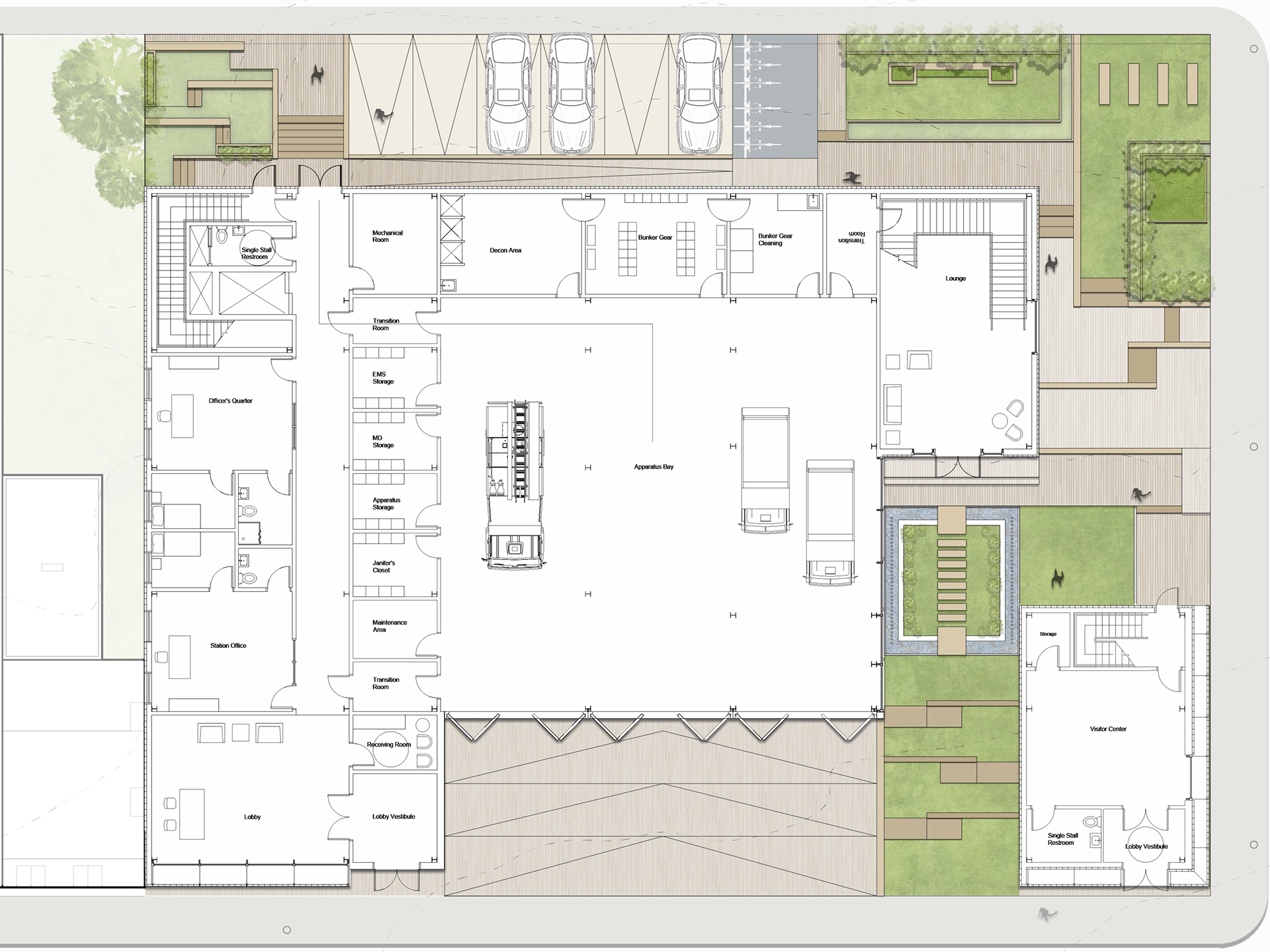

Ground Floor Plan

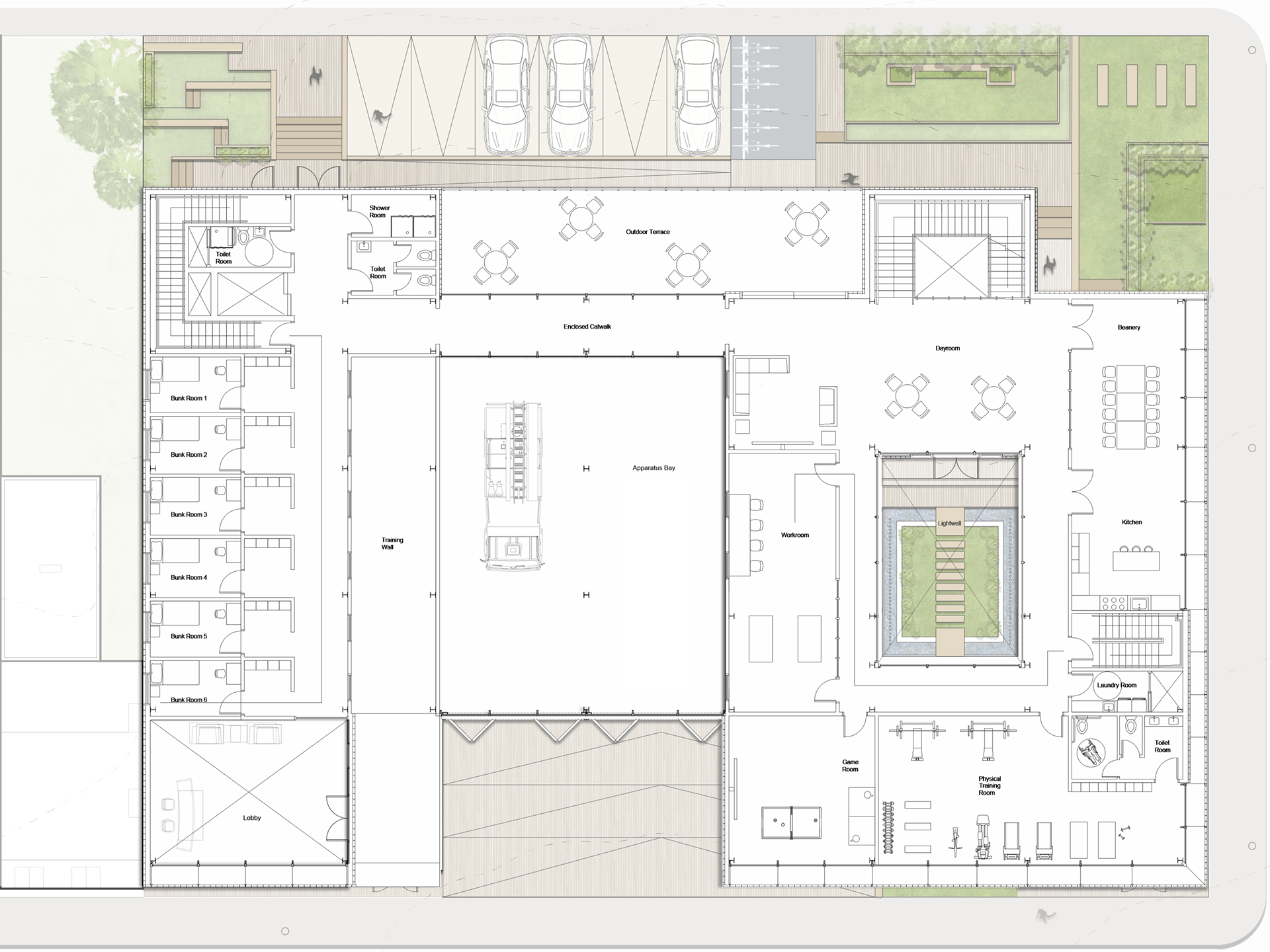

Second Floor Plan

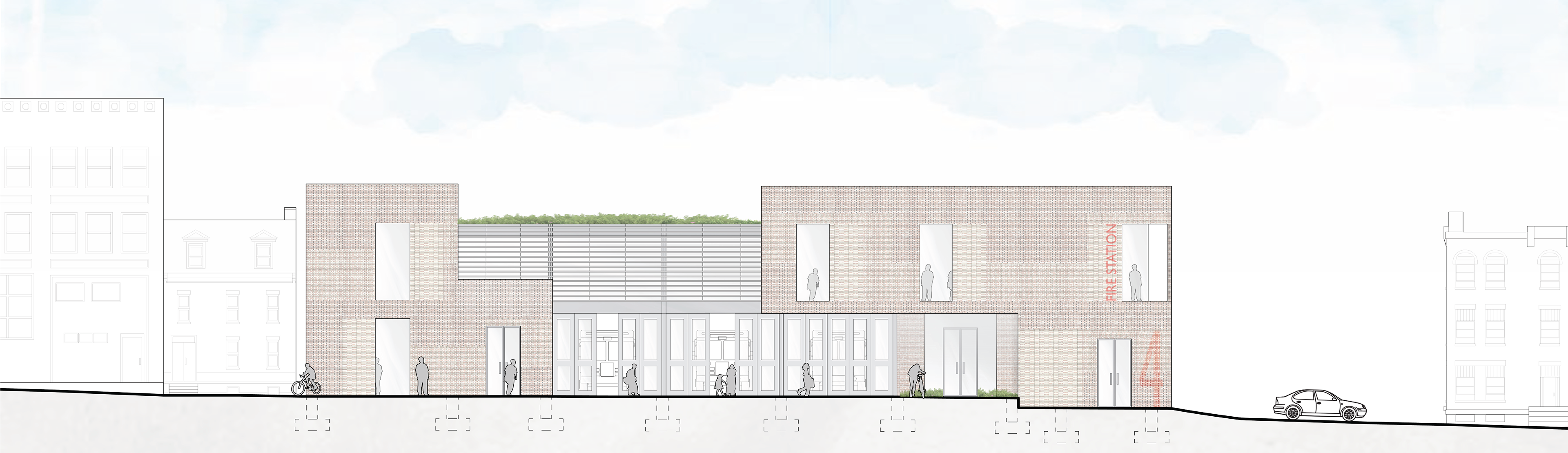

Front Elevation

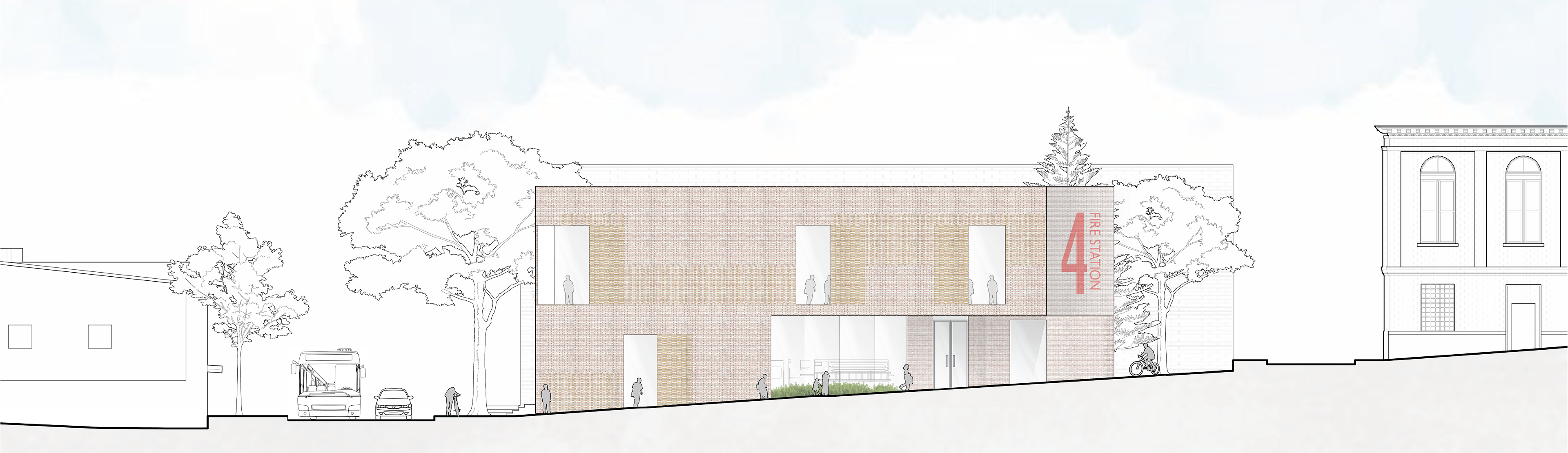

Side Elevation
Front Section

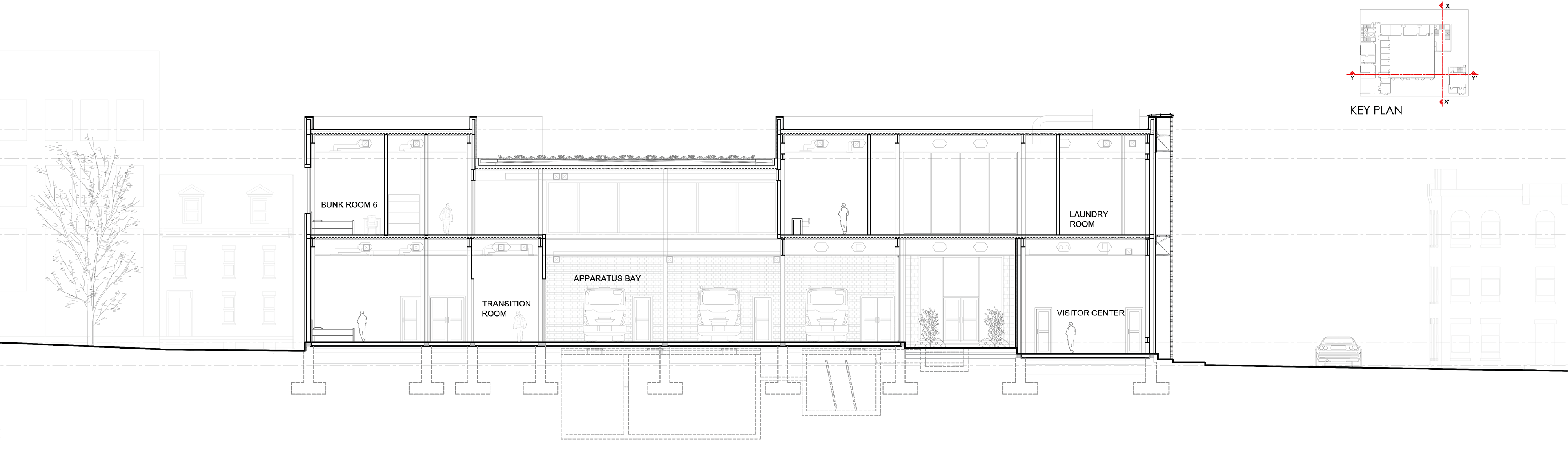

Side Section

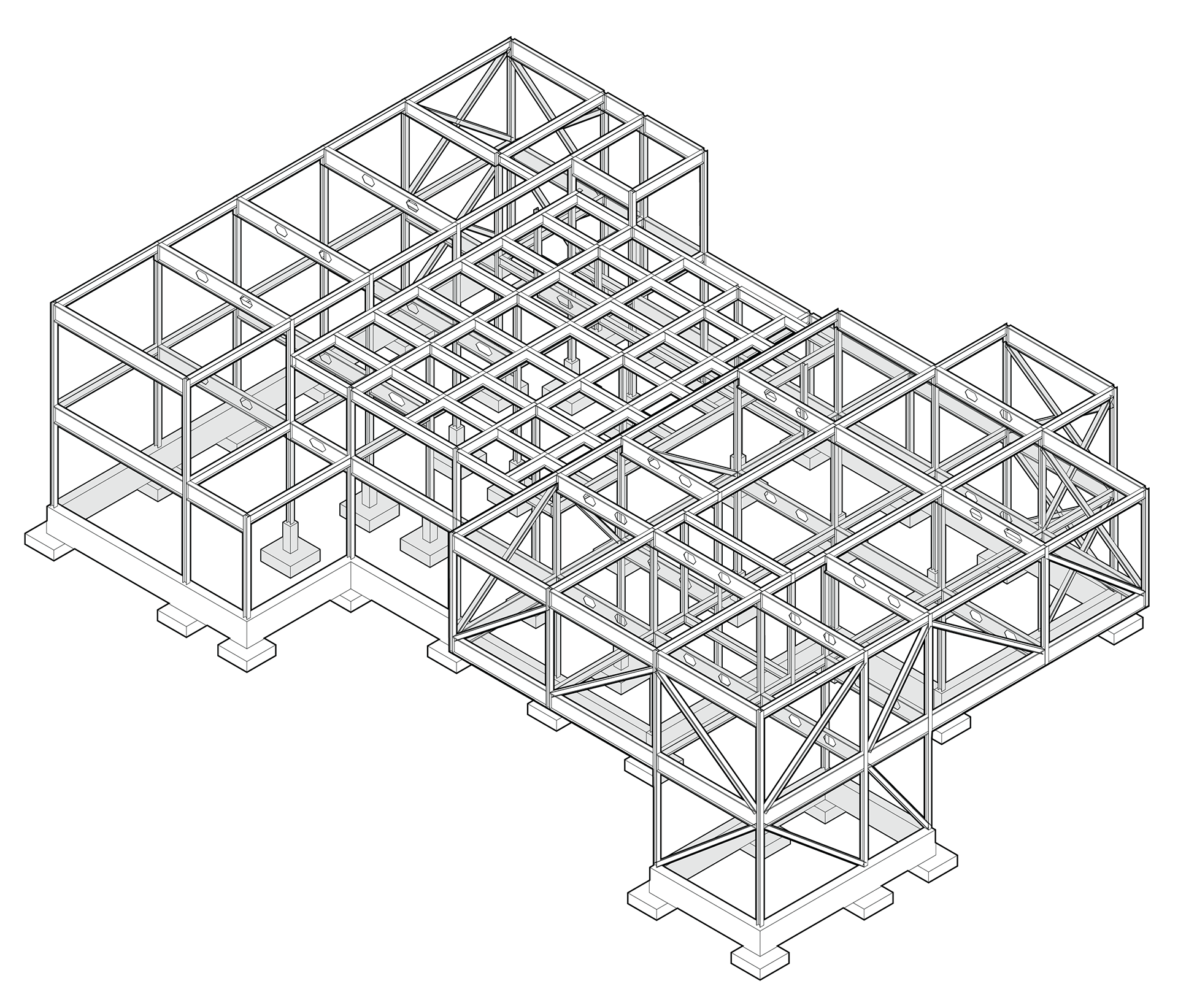

Structure Axonometric

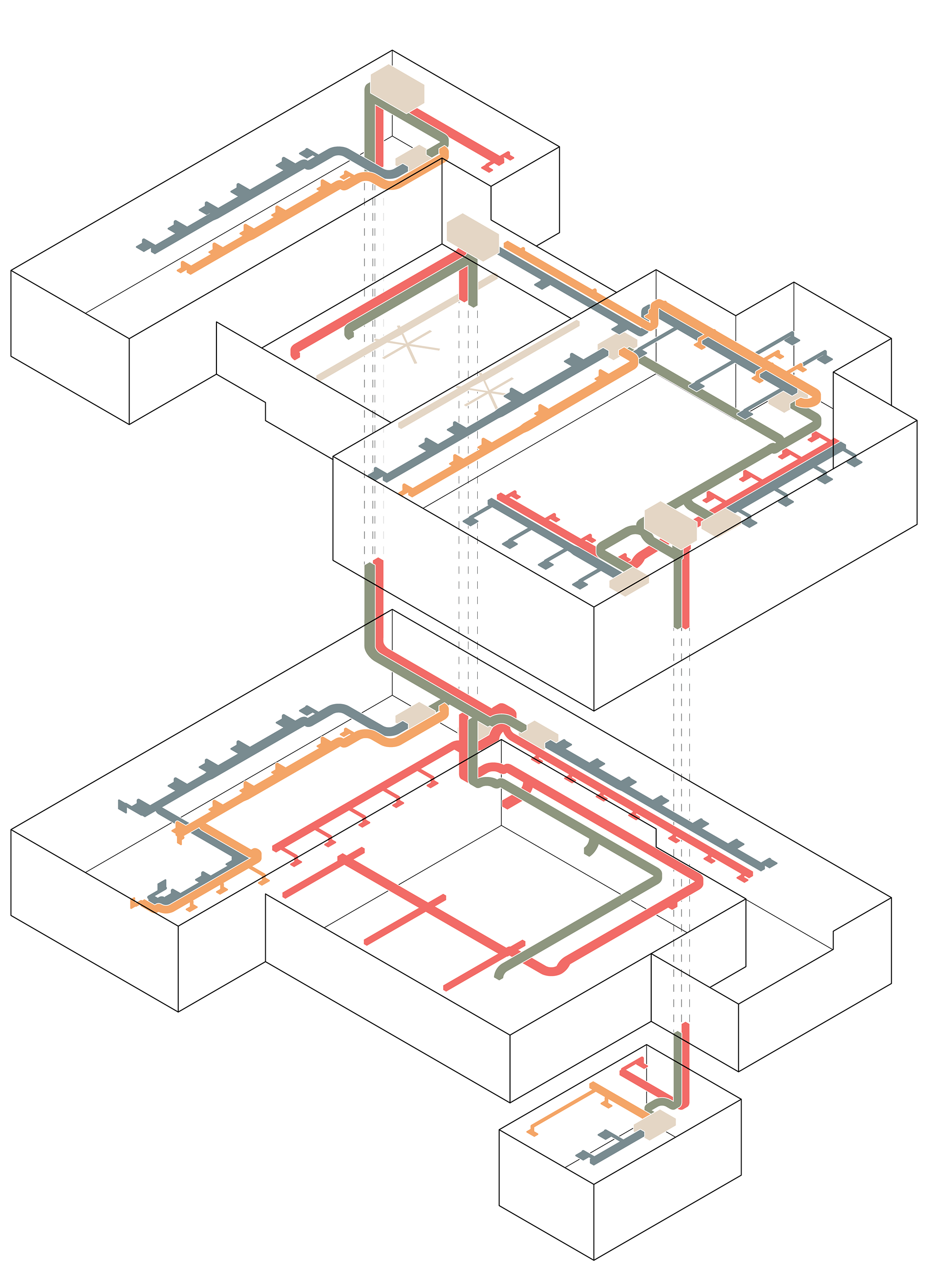

HVAC Axonometric

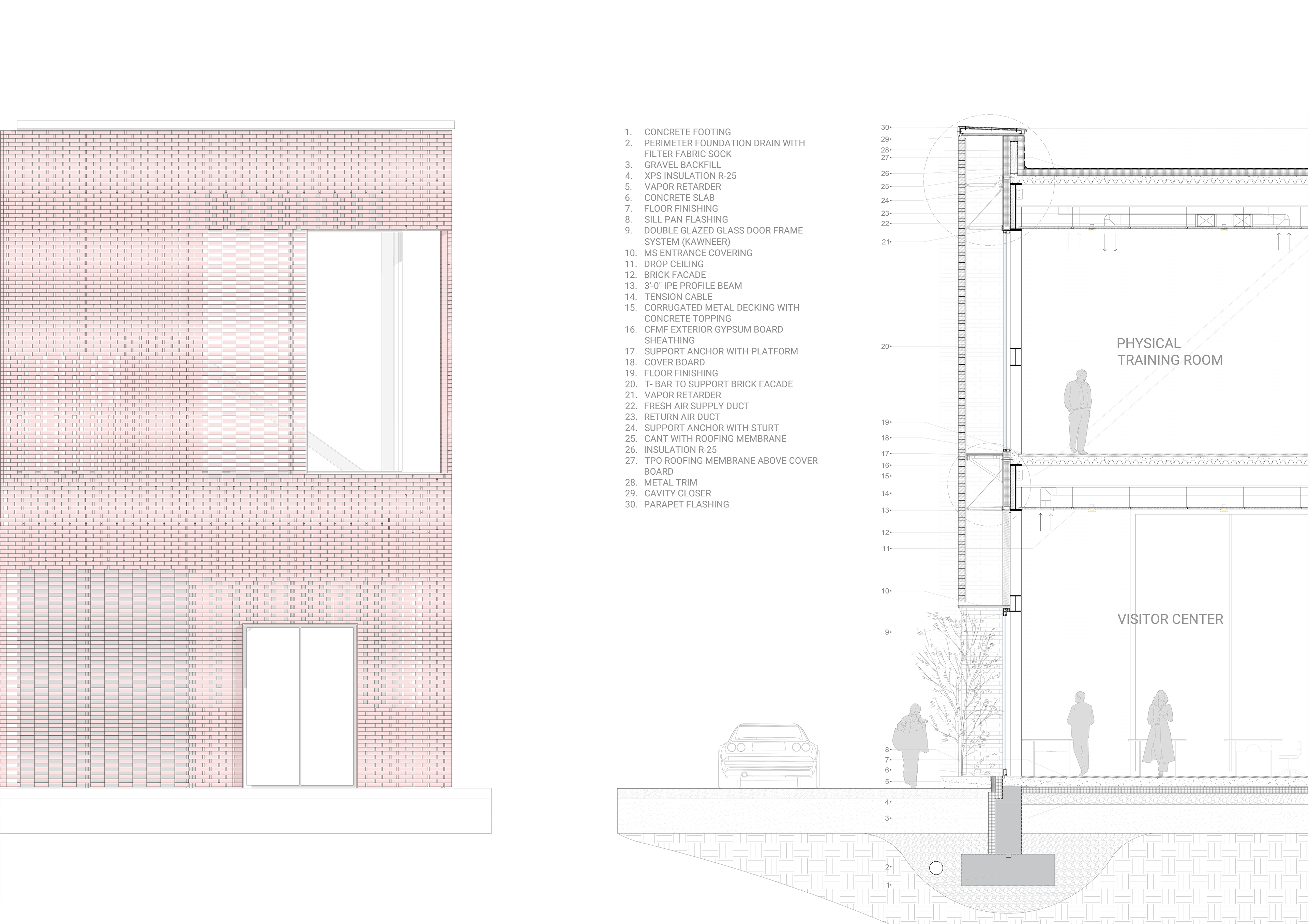

Visitor Center Wall Detail

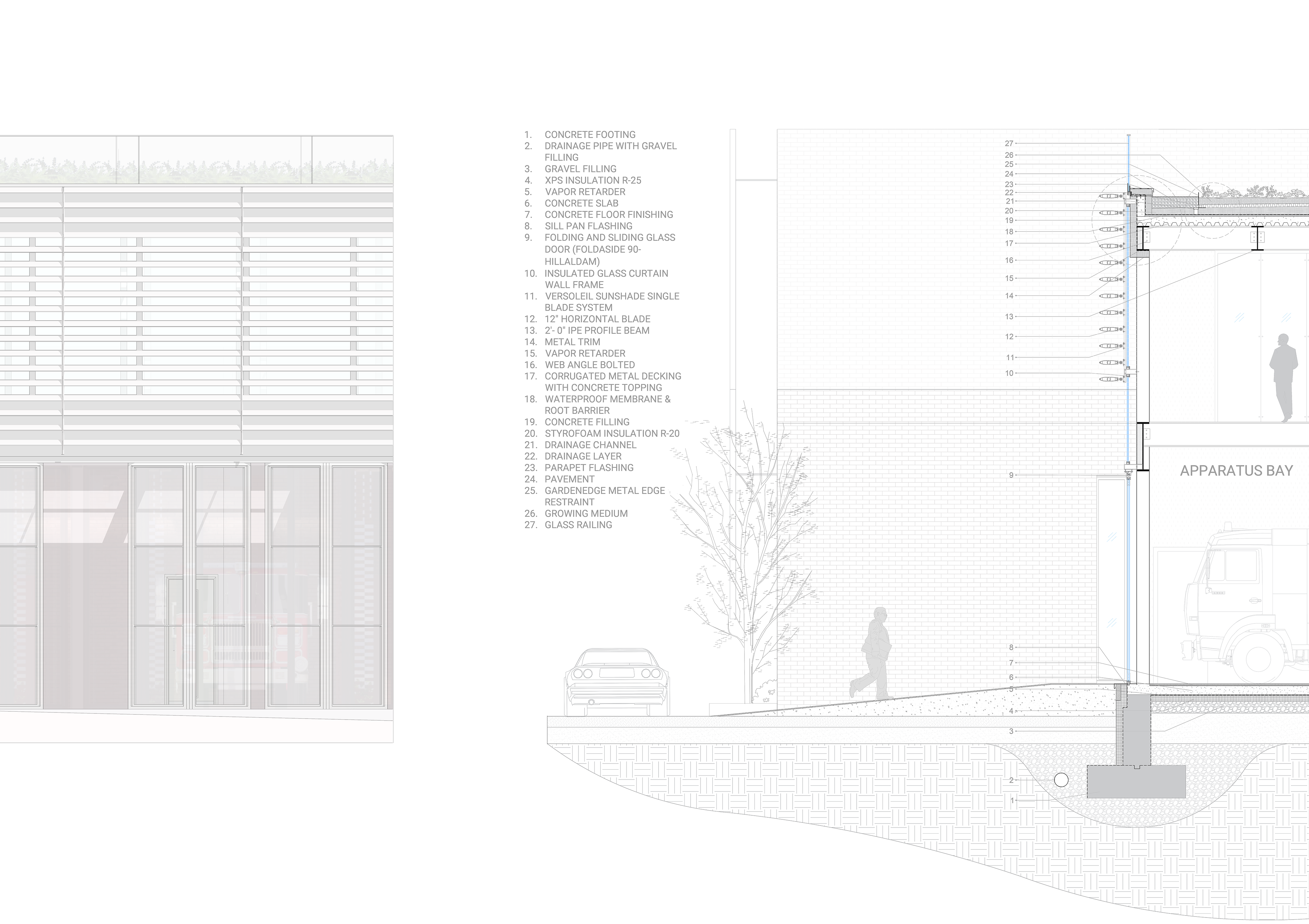

Apparatus Bay Wall Detail

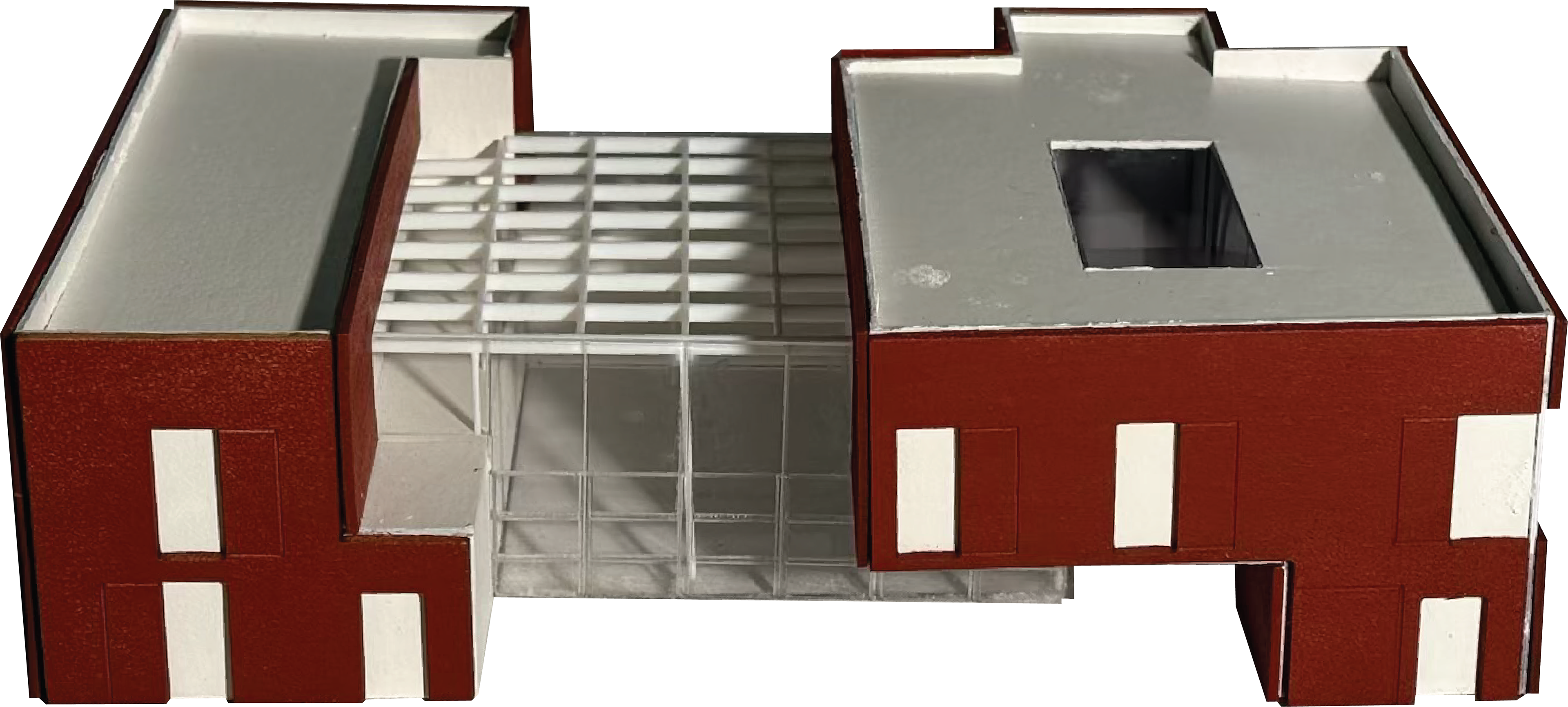

Massing Model

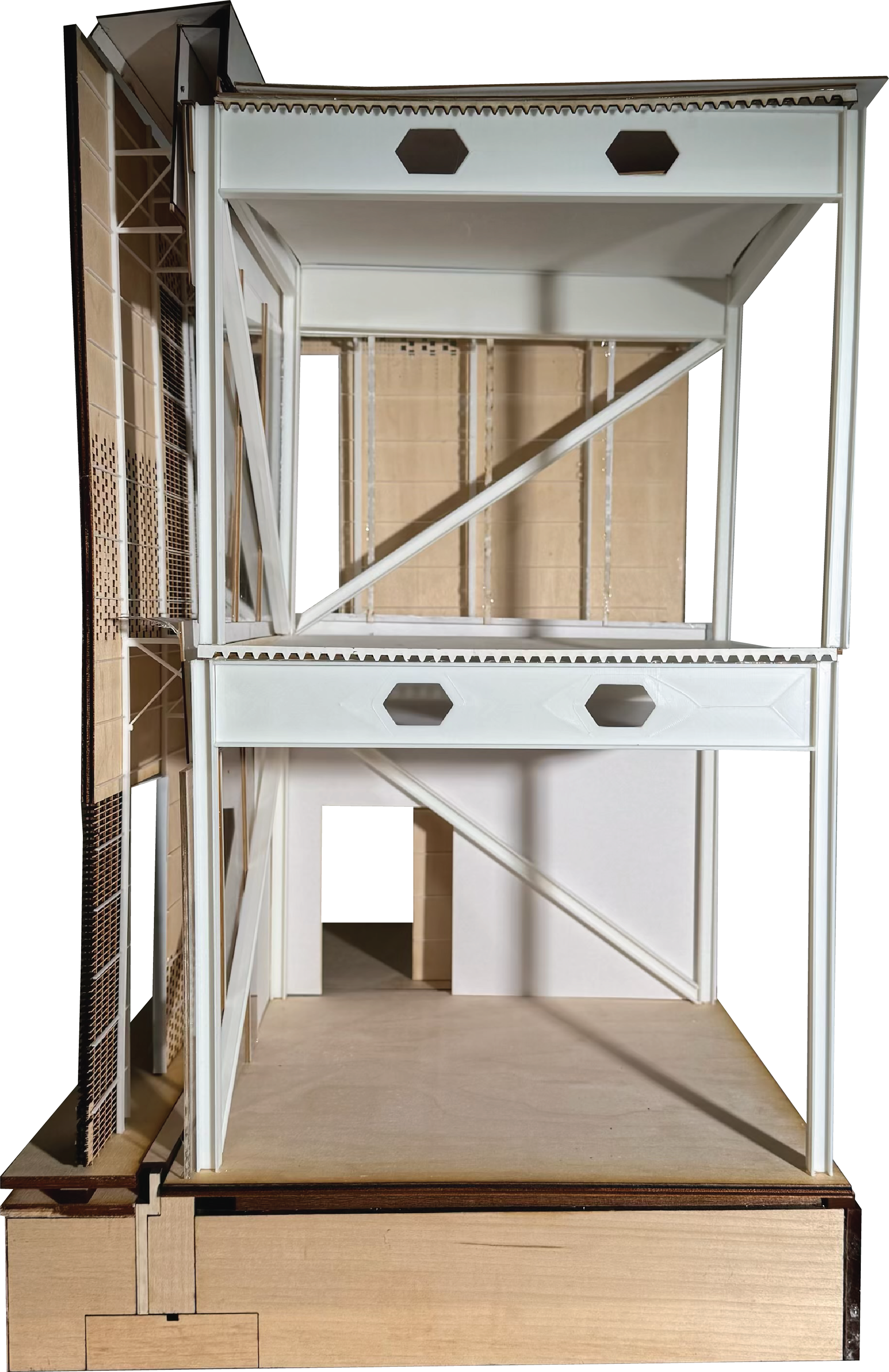

1/2" = 1' Detail Model
